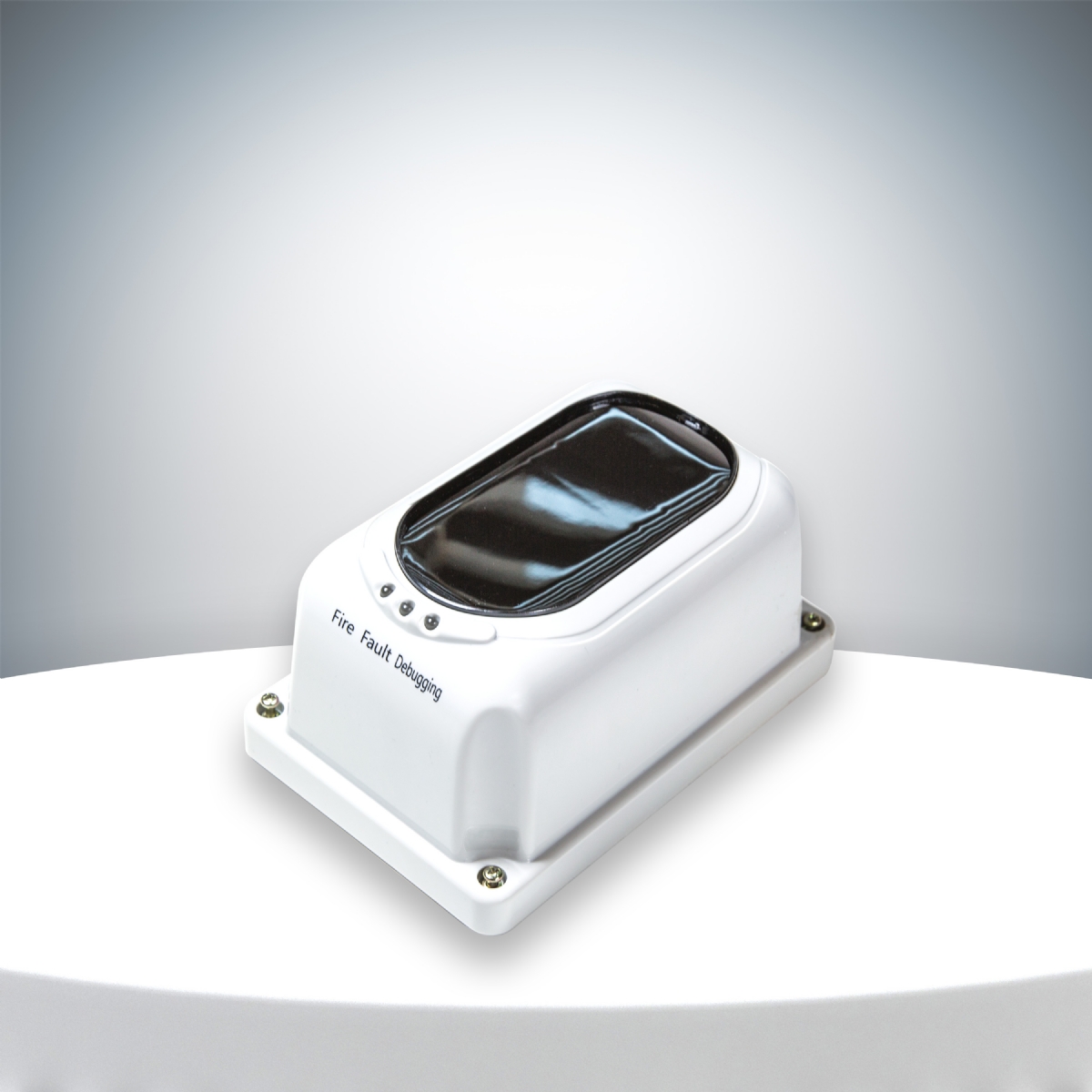

I-1010 ConventionalBeam Detector
I-1010 Conventional Beam Detectors are designed and developed to be fully compatible with I-1000-4-8-16 and Conventional Panels of different brand-models. It can be integrated into the addressed system with the Zone Monitoring Module. I-1010 Series is a reflective infrared heat type smoke detector. It should be used with 1-4 reflectors depending on the environment to be protected. Thanks to the internal microprocessor, it has the ability to analyze and judge. It carries out system adjustments and compensation depending on the environment variations. It does it with fixed algorithms by using LED and signal through output terminals. Detector sensitivity can be adjusted to expand the application area.
MAIN FEATURES
• High Quality and reliability
• 12-24 and 220 volt Options
• Smd Circuit Board Design
• Aesthetic Appearance Easy Installation
• Low Wiring Cost Due To The Use Of Reflector
• Advanced Multi-functional microprocessor
controlled
• Sensitivity threshold feature
• Normal Operation Error alarm led indicators
• Protection area 15m-100m
• ABS Plastic body
• 2 years warranty
Standard EN54-12 IP protection IP30 Operating Voltage 12-24 V DC Operating Current 5 mA Max, 3 mA Min Operating Temperature -10°C to +50°C Protection Area max 1500 m2 Material and color ABS, White Cable 1 pair of poles, 1 ex. feeds Dimensions 250mm x 100mm x 100mm Weight 220 gr
