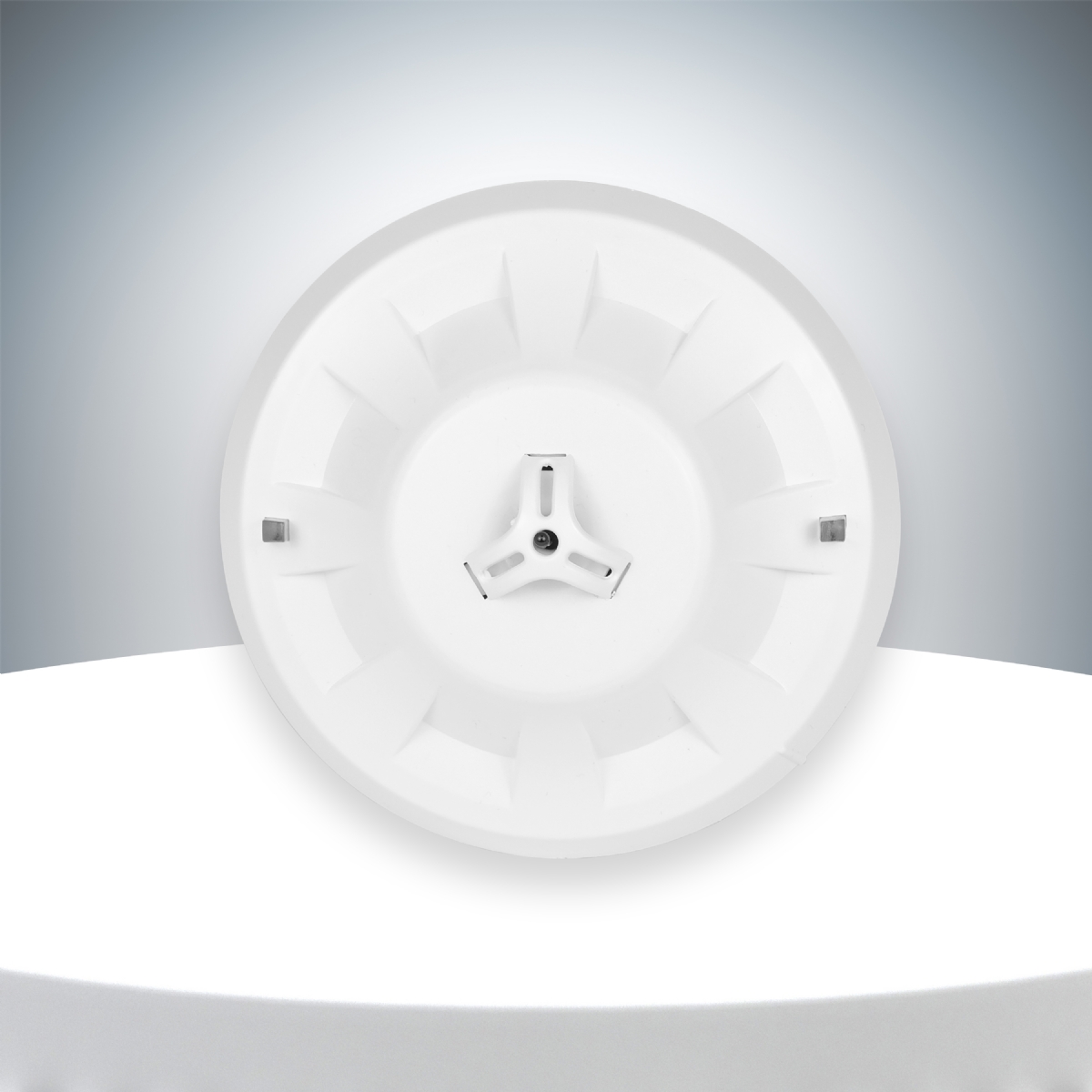

R-1003 Conventional DualHeat Detector with Relay
R-1003 Conventional Relay Heat Detectors are designed and developed to work fully compatible with Intrusion Alarm and Special Automation Systems. R-1003 heat detector is a functional device that can be used in places that will provide rapid transition to the heat phase where smoke detectors cannot be used. Thanks to its powerful heat detection algorithm, it provides fast and reliable results in the event of an event.
MAIN FEATURES
• High Quality and reliability
• Smd Circuit Board Design
• Detecting Different Fire Types
• 360 Visible Dual LEDs
• Aesthetic Appearance Easy Installation
• Works with the Light Nonsense Principle
• ABS Plastic body
• Indicator Connection
• 2 years warranty
Standard EN54-5 IP protection IP20 Operating Voltage 12V DC NO/NC Operating Current 5mA Max, 0.8 mA Min Operating Temperature -10°C to +50°C Relative humidity %95 Material and color ABS, Red Cable 1 pair of poles Dimensions Diameter 100mm Height 50mm Weight 120 gr
