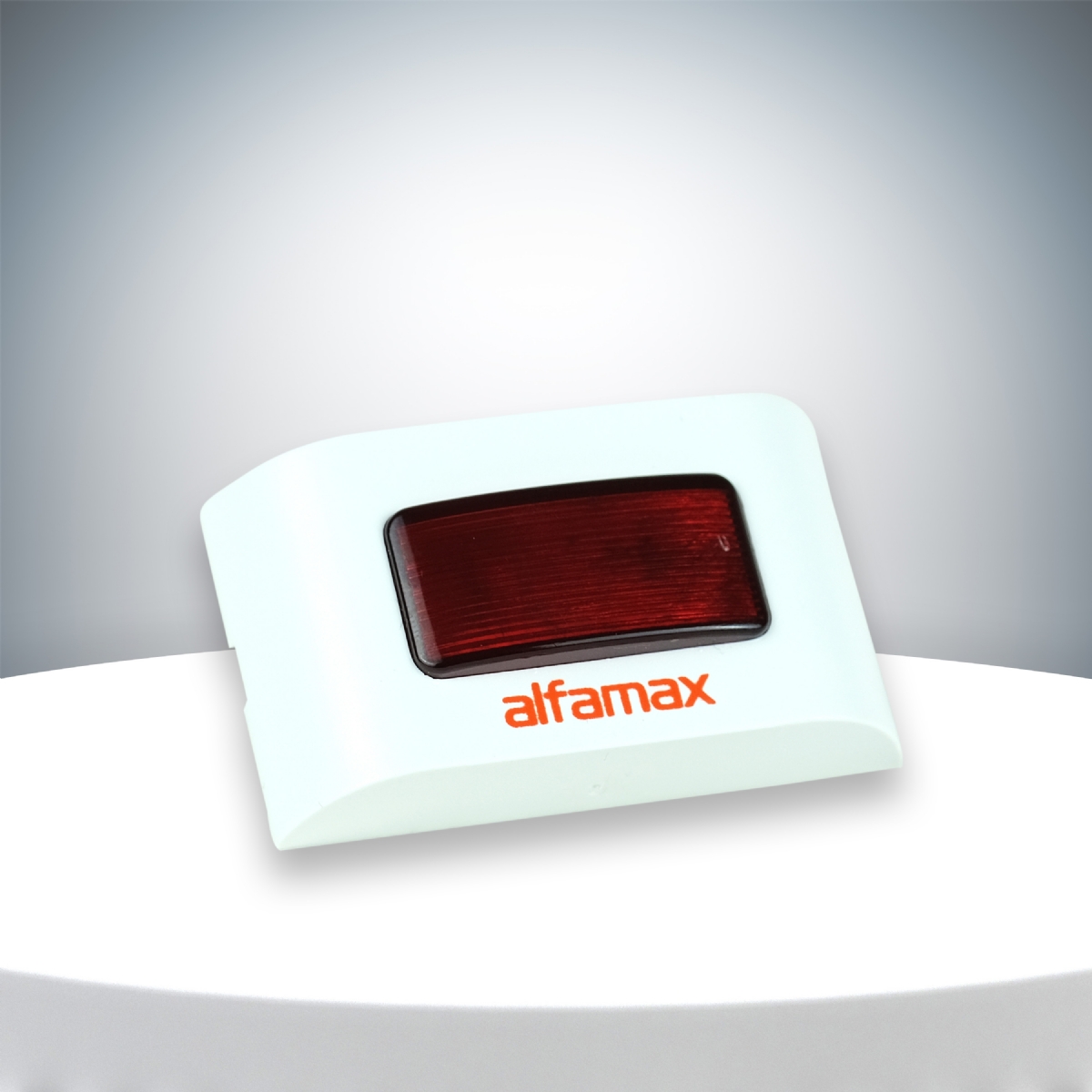

ALP-01 ParallelWarning Light
ALP-01 Parallel Warning Lamp has been designed and developed to be fully compatible with Conventional and Addressable Sensing Devices. Parallel Warning Lamp allows to detect the Alarm Location of the Detectors that are in the Suspended Ceiling or Raised Floor and go into alarm. It is used to detect whether the detector to which it is connected is detecting in areas where the number of detectors is high and the detector is difficult to reach. ALP-01 Parallel Warning Light is a product that can be easily assembled thanks to its white colored casing consisting of two parts. Thanks to the structure of the case made of ABS plastic, the cable connections of the device can be made before it is placed on the base.
MAIN FEATURES
• Electronic and led design
• No polarized
• High Quality and reliability
• Smd Circuit Board Design
• Compatible with all different brand detectors with
indicator output
• Aesthetic Appearance Easy Installation
• ABS Plastic body
• 2 years warranty
IP protection IP33 Operating Voltage 24V DC Operating Current 20mA Max, 2mA Min Operating Temperature -10°C to +50°C Alarm Indicator Red Bright Color Material and color ABS, White Cable 1 pair of poles Dimensions 70 mm x 35 mm Weight 60 gr
