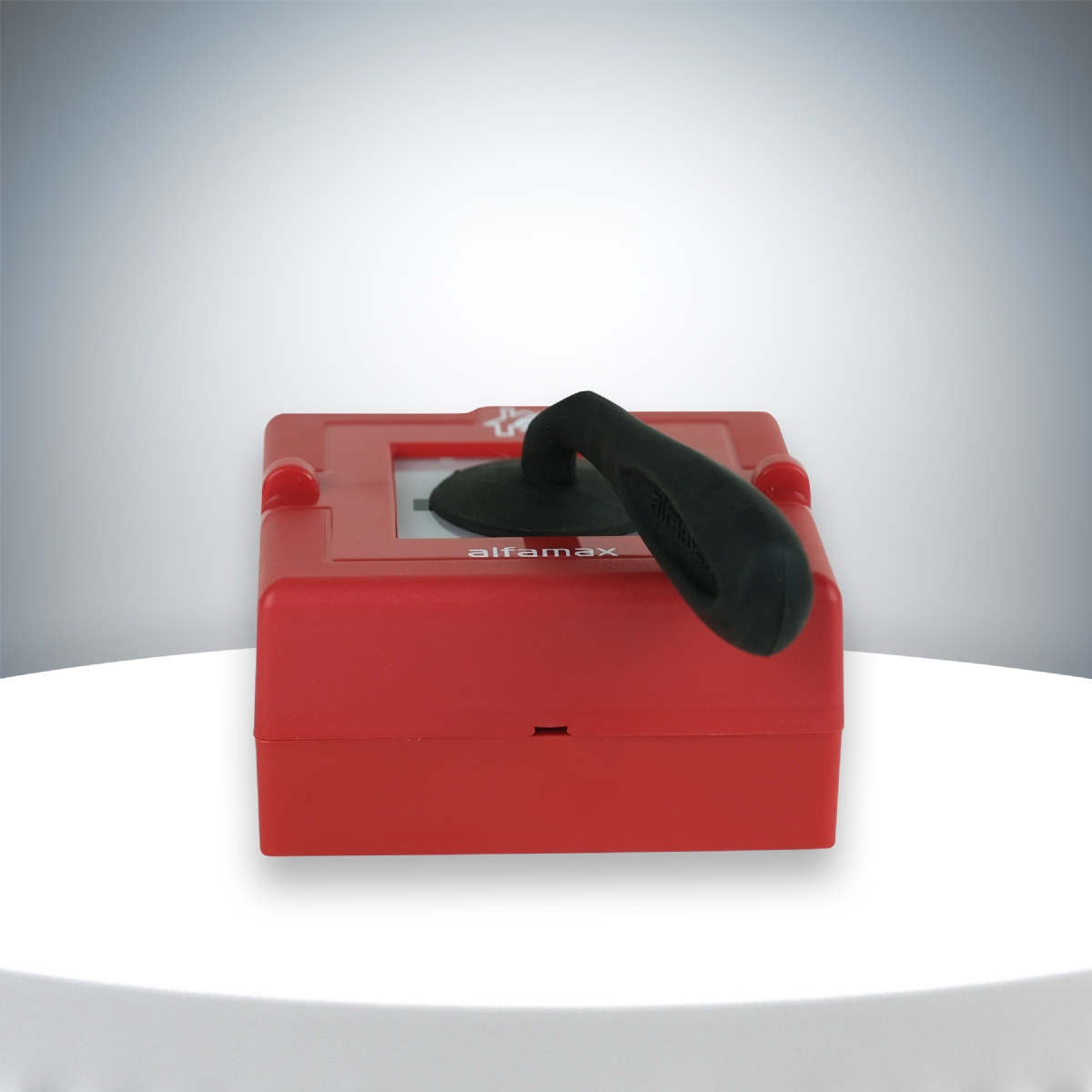

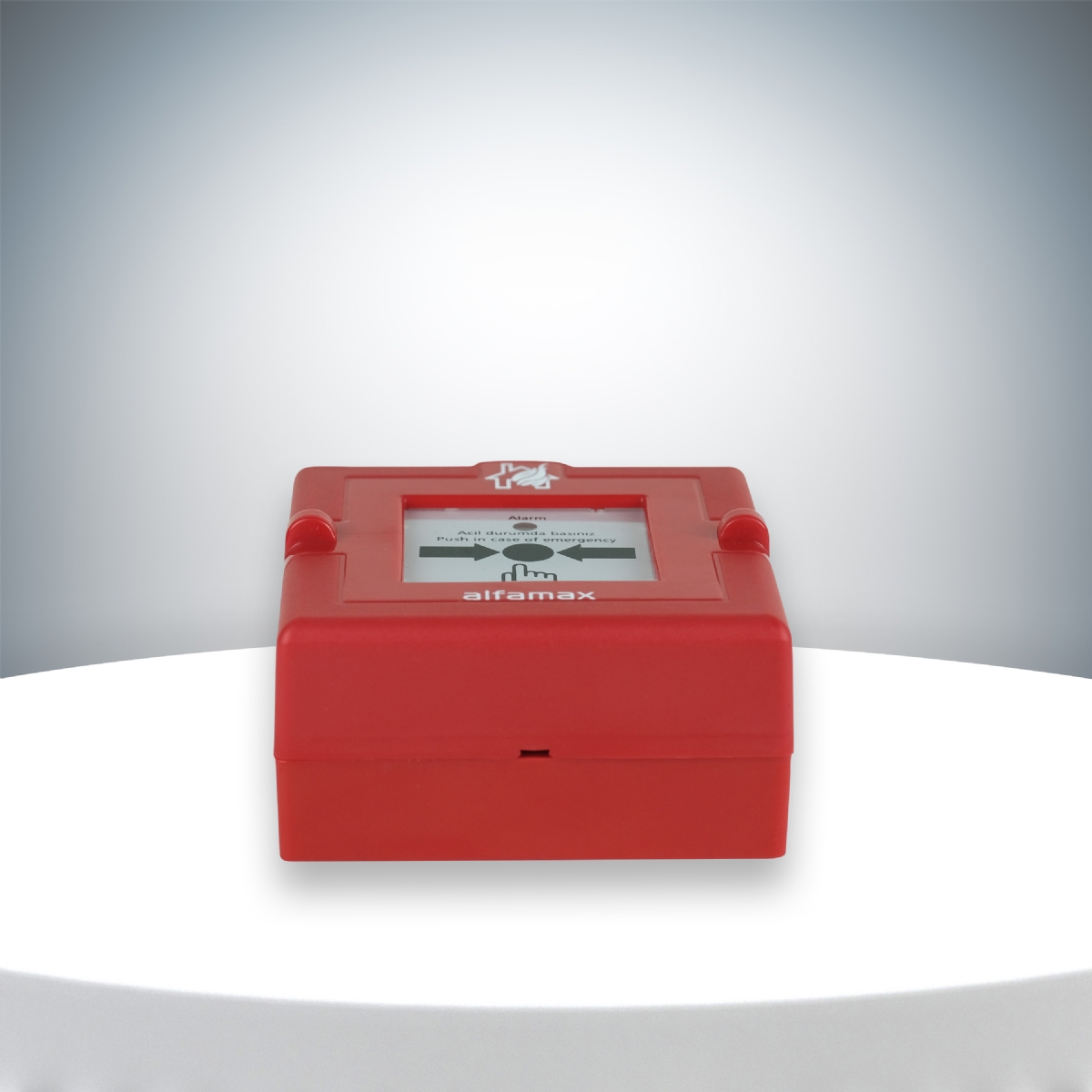

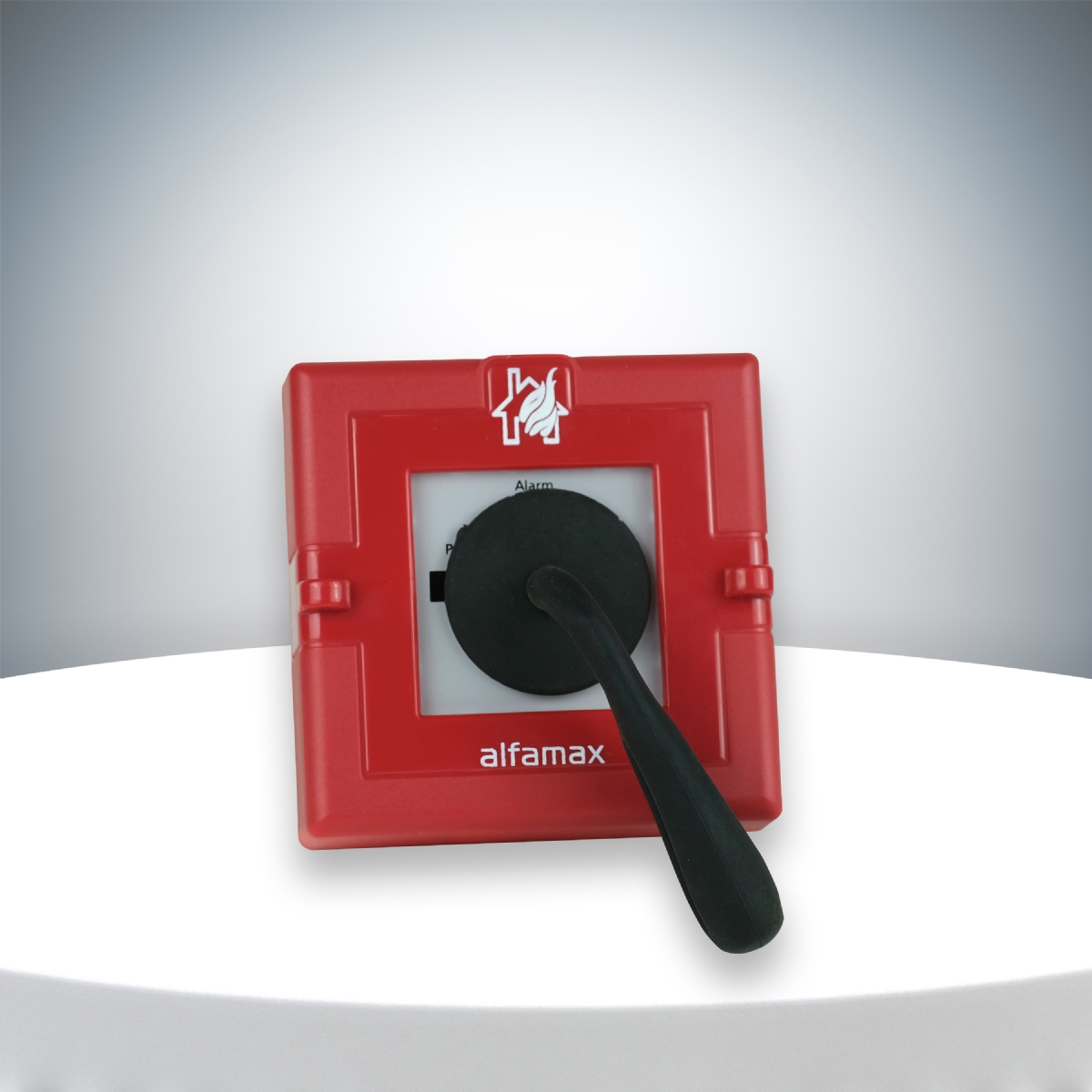

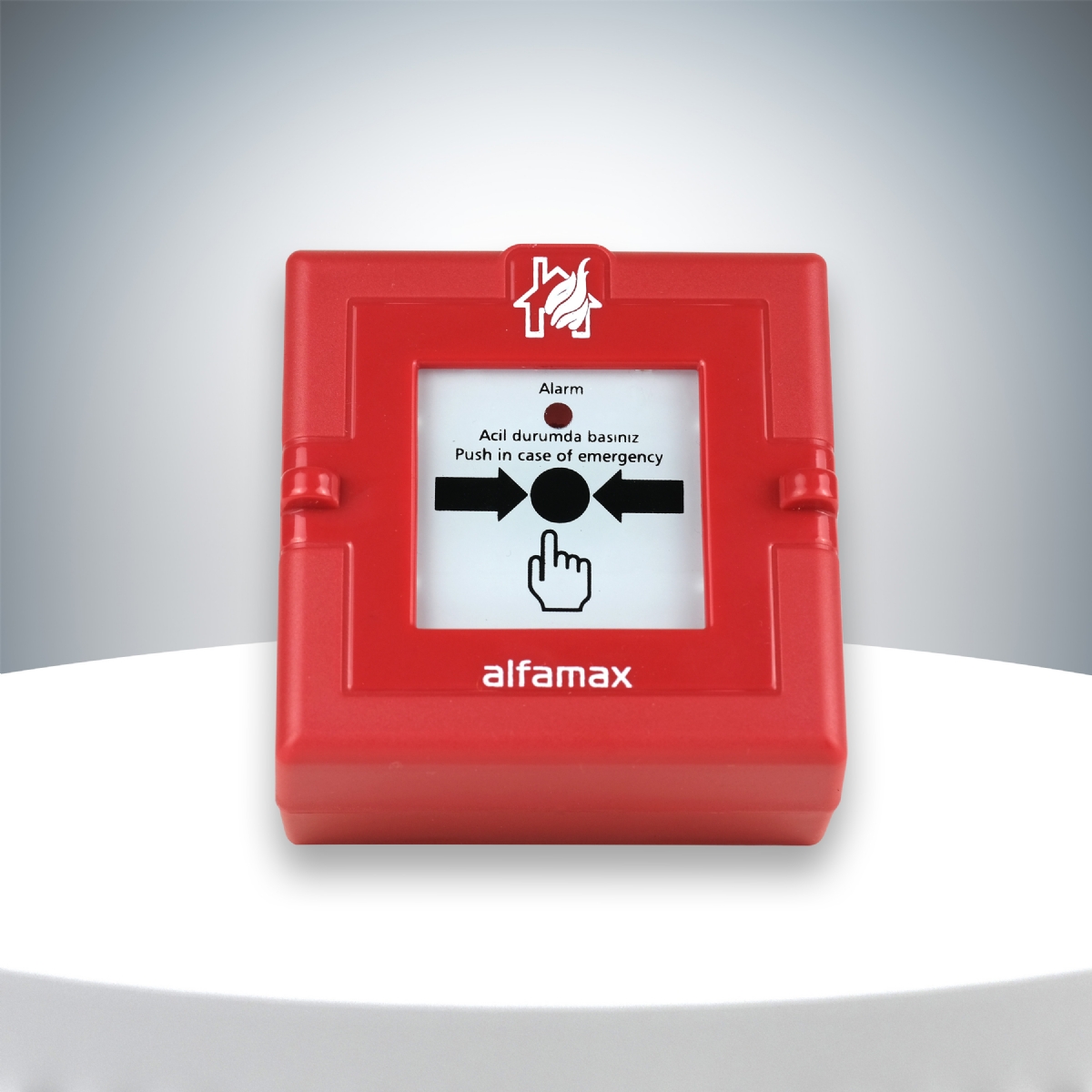

I-1005 AddressableFire Alarm Button with Isolator
1-1005 Addressable Fire Button Designed and developed to be fully compatible with 1-1000 Series Intelligent Addressable Fire Panels. Optional protection cover can be used. 1-1005 Addressable Fire Alarm Button is a durable and stylish product that enables to generate an alarm by pressing the shatterproof glass button to be used in case of fire. The plastic glass button, which can be easily reset with the red colored ABS case and the ALFAMAX suction cup re-assembly, provides an easy and ergonomic use. In addition, an optional protection cover can be used
MAIN FEATURES
• Intelligent detection and communication
protocols,
• High Quality and reliability
• Smd Circuit Board Design
• Unbreakable Glass Assembly
• LED for Visual Warning
• Aesthetic Appearance Easy Installation
• ABS Plastic body
• 2 years warranty
Standard EN54-11 IP protection IP20 Operating Voltage 24V DC loop voltage(+-%10) Operating Current 20mA Max, 0.8 mA Min Operating Temperature -10°C to +50°C Relative Humidity %95 Material and color ABS, White Cable 1 pair of poles Dimensions Diameter 95mm Height 95mm Weight 120 gr
