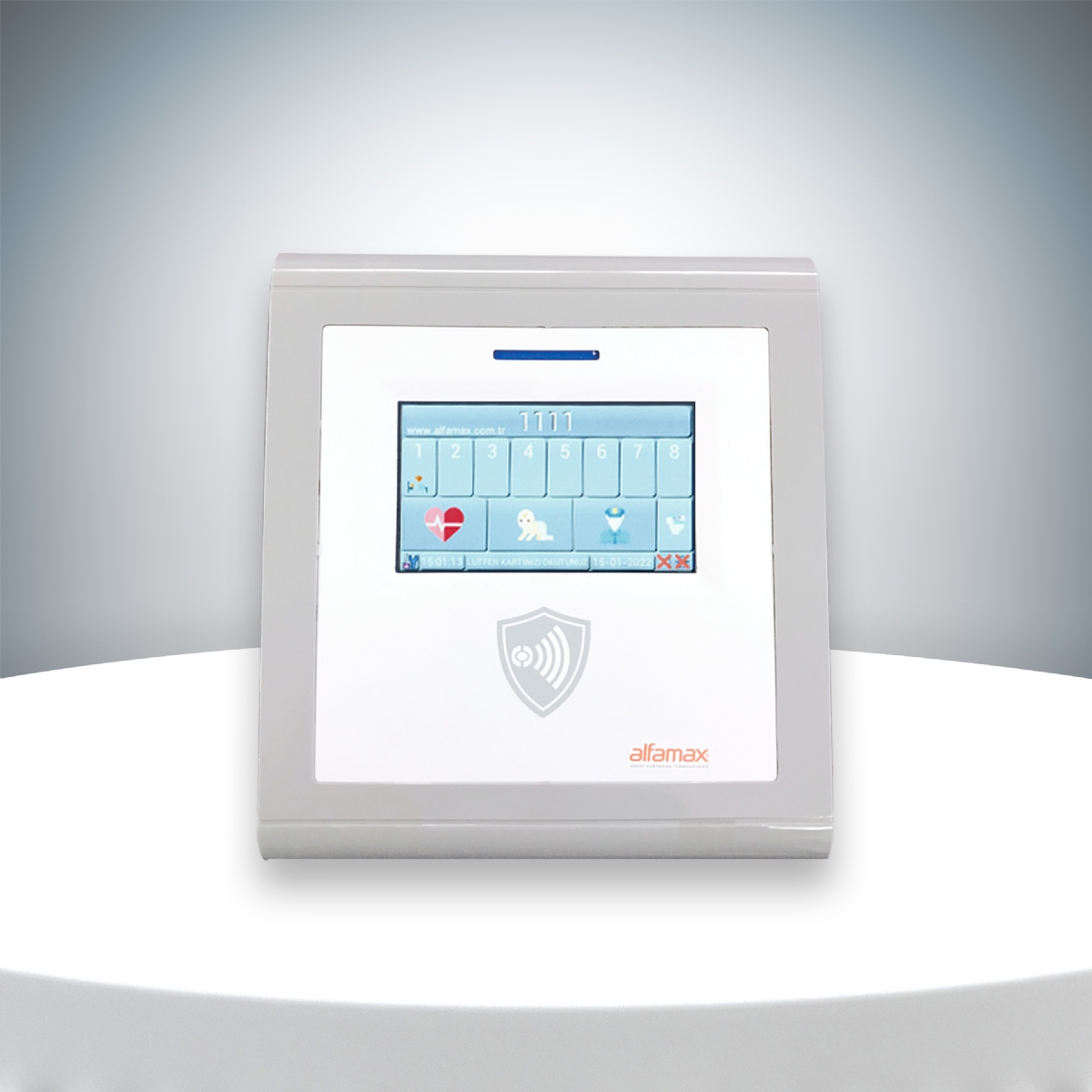

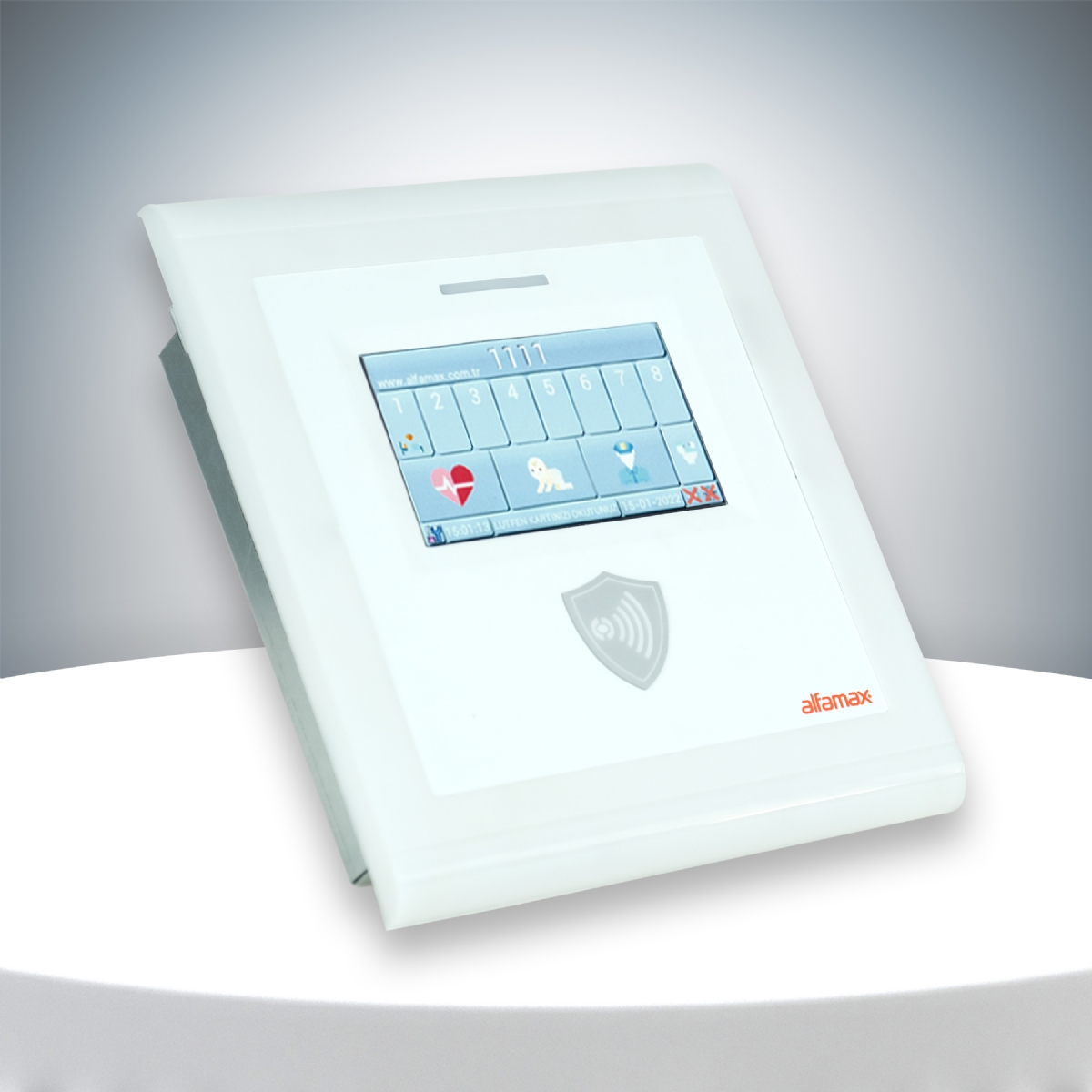

AL1010M-IPRoom Control Unit
• It can be updated interface via SD card.
• Recognizes the user by MiFare card reader.
• Red, blue, pink, white codes, maid call and settings
buttons with visual icons.
• Blue, white, pink code buttons is activated and
deactivated via Mİfare card reader.
• Non-screwed connection.
• 32 bit ARM Cortex M3 microcontroller , 512 K flash Rom,
real time clock (RTC), SD card and card reader, 3.5 ‘’
colour TFT touch screen.
• Room modüle communicates via TCP/IP with server
and via RS485 physical and software layer with the
units inside the room.
• Functions properly, reports the actions,logs whether
disconnected from the server, sends all the logs when
connected the server.
• 8 Bed Side Call Reset- Units, 1 WC- Bath Call Unit and a
Corridor Warning Light can be attached.
Operating Voltage 12-24VDC IP Protection IP23 Operating Temperature -10°C to +50°C Mounting Type Over Plaster Material and Color Aluminium Cable CAT-6 Sizes 440*165 * 225mm Weight 420 gr. Connection RJ-45 input (8)
